Hibernate Caching Strategies

Advanced Cache Configuration with Redis, EhCache, and Hazelcast

Effective caching is crucial for high-performance Hibernate applications. This guide covers comprehensive caching strategies, from basic first-level caching to advanced distributed caching solutions with Redis, EhCache, and Hazelcast.

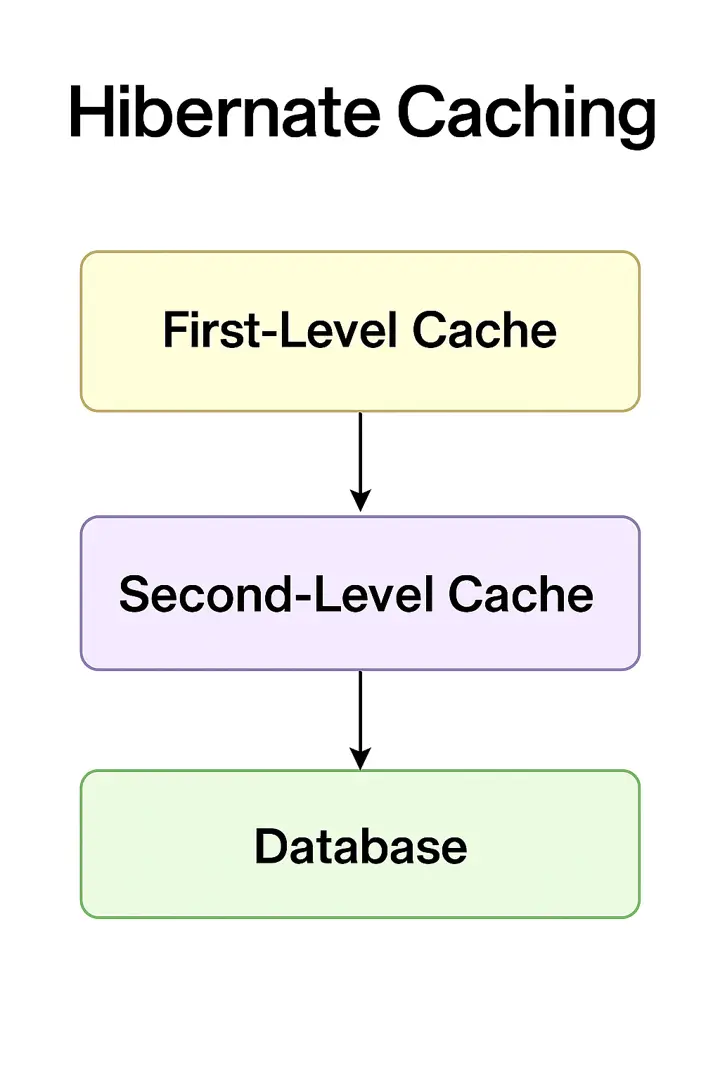

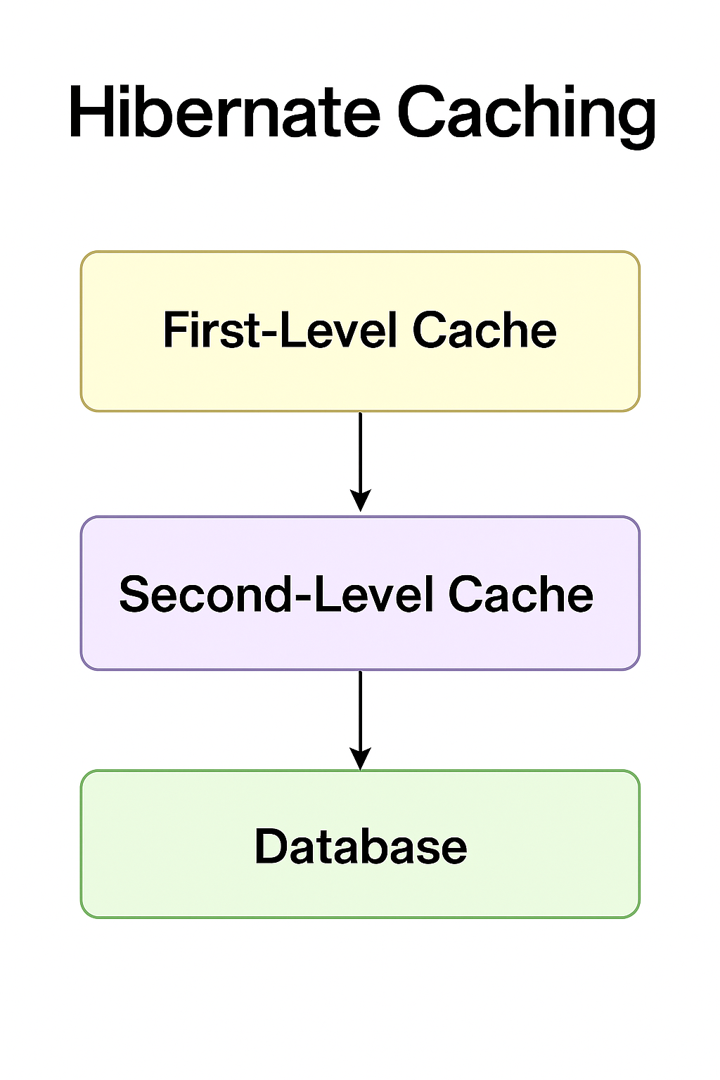

Hibernate Caching Architecture

Three Levels of Caching

First Level Cache: Session-scoped, automatic, no configuration needed
Second Level Cache: SessionFactory-scoped, configurable, shared across sessions
Query Cache: Caches query results, requires explicit configuration

1. First Level Cache (Session Cache)

Understanding Session Cache

The first-level cache is automatically enabled and provides entity caching within a single session. Understanding its behavior is crucial for optimizing data access patterns.

Session Cache Example

@Service
@Transactional
public class ProductService {

    @PersistenceContext
    private EntityManager entityManager;

    public Product getProduct(Long id) {
        // First call - hits database
        Product product1 = entityManager.find(Product.class, id);

        // Second call - hits session cache
        Product product2 = entityManager.find(Product.class, id);

        // product1 and product2 are the same instance
        assert product1 == product2;

        return product1;
    }
}

Session Cache Management

Cache Control Methods

@Service
@Transactional
public class CacheManagementService {

    @PersistenceContext
    private EntityManager entityManager;

    public void clearSessionCache() {
        entityManager.clear(); // Clears all cached entities
    }

    public void evictEntity(Class<?> entityClass, Object id) {
        entityManager.getEntityManagerFactory()
            .getCache()
            .evict(entityClass, id);
    }

    public boolean isCached(Class<?> entityClass, Object id) {
        return entityManager.getEntityManagerFactory()
            .getCache()
            .contains(entityClass, id);
    }
}

2. Second Level Cache Configuration

Enabling Second Level Cache

Hibernate Configuration

# Enable second level cache
spring.jpa.properties.hibernate.cache.use_second_level_cache=true
spring.jpa.properties.hibernate.cache.use_query_cache=true
spring.jpa.properties.hibernate.cache.region.factory_class=org.hibernate.cache.jcache.JCacheRegionFactory

# Cache provider configuration
spring.jpa.properties.hibernate.javax.cache.provider=org.ehcache.jsr107.EhcacheCachingProvider
spring.jpa.properties.hibernate.javax.cache.uri=classpath:ehcache.xml

Entity Cache Configuration

Cacheable Entity

@Entity
@Table(name = "products")
@Cacheable
@Cache(usage = CacheConcurrencyStrategy.READ_WRITE, region = "product-cache")
public class Product {

    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private Long id;

    @Column(nullable = false)
    private String name;

    @Column(nullable = false)
    private BigDecimal price;

    @ManyToOne(fetch = FetchType.LAZY)
    @JoinColumn(name = "category_id")
    @Cache(usage = CacheConcurrencyStrategy.READ_WRITE)
    private Category category;

    // Getters and setters
}

3. EhCache Configuration

EhCache Setup

EhCache is a popular choice for second-level caching due to its simplicity and performance characteristics.

Maven Dependencies

<dependency>
    <groupId>org.hibernate</groupId>
    <artifactId>hibernate-ehcache</artifactId>
    <version>5.6.15.Final</version>
</dependency>

<dependency>
    <groupId>org.ehcache</groupId>
    <artifactId>ehcache</artifactId>
    <version>3.10.8</version>
</dependency>

EhCache Configuration File

ehcache.xml

<?xml version="1.0" encoding="UTF-8"?>
<config xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
        xmlns="http://www.ehcache.org/v3"
        xsi:schemaLocation="http://www.ehcache.org/v3
        http://www.ehcache.org/schema/ehcache-core-3.0.xsd">

    <cache-template name="default">
        <key-type>java.lang.Object</key-type>
        <value-type>java.lang.Object</value-type>
        <expiry>
            <ttl unit="minutes">30</ttl>
        </expiry>
        <resources>
            <heap unit="entries">1000</heap>
            <offheap unit="MB">10</offheap>
        </resources>
    </cache-template>

    <cache alias="product-cache" uses-template="default">
        <expiry>
            <ttl unit="minutes">60</ttl>
        </expiry>
        <resources>
            <heap unit="entries">5000</heap>
            <offheap unit="MB">50</offheap>
        </resources>
    </cache>

    <cache alias="category-cache" uses-template="default">
        <expiry>
            <ttl unit="hours">2</ttl>
        </expiry>
        <resources>
            <heap unit="entries">1000</heap>
        </resources>
    </cache>

</config>

4. Redis Cache Configuration

Redis Setup for Distributed Caching

Redis provides excellent distributed caching capabilities for clustered applications.

Redis Dependencies

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-data-redis</artifactId>
</dependency>

<dependency>
    <groupId>org.hibernate</groupId>
    <artifactId>hibernate-redis</artifactId>
    <version>2.1.0</version>
</dependency>

Redis Configuration

Redis Properties

# Redis Configuration
spring.redis.host=localhost
spring.redis.port=6379
spring.redis.password=your-redis-password
spring.redis.database=0
spring.redis.timeout=2000ms
spring.redis.lettuce.pool.max-active=8
spring.redis.lettuce.pool.max-idle=8
spring.redis.lettuce.pool.min-idle=0

# Hibernate Redis Configuration
spring.jpa.properties.hibernate.cache.region.factory_class=org.hibernate.cache.redis.hibernate52.SingletonRedisRegionFactory
spring.jpa.properties.hibernate.cache.redis.host=localhost
spring.jpa.properties.hibernate.cache.redis.port=6379
spring.jpa.properties.hibernate.cache.redis.password=your-redis-password
spring.jpa.properties.hibernate.cache.redis.database=1

Redis Cache Service

@Service
public class RedisCacheService {

    @Autowired
    private RedisTemplate<String, Object> redisTemplate;

    public void cacheProduct(Product product) {
        String key = "product:" + product.getId();
        redisTemplate.opsForValue().set(key, product, Duration.ofMinutes(30));
    }

    public Optional<Product> getCachedProduct(Long id) {
        String key = "product:" + id;
        Product product = (Product) redisTemplate.opsForValue().get(key);
        return Optional.ofNullable(product);
    }

    public void evictProduct(Long id) {
        String key = "product:" + id;
        redisTemplate.delete(key);
    }

    public void evictAllProducts() {
        Set<String> keys = redisTemplate.keys("product:*");
        if (keys != null && !keys.isEmpty()) {
            redisTemplate.delete(keys);
        }
    }
}

5. Hazelcast Cache Configuration

Hazelcast Setup

Hazelcast Dependencies

<dependency>
    <groupId>com.hazelcast</groupId>
    <artifactId>hazelcast</artifactId>
    <version>5.3.0</version>
</dependency>

<dependency>
    <groupId>com.hazelcast</groupId>
    <artifactId>hazelcast-hibernate53</artifactId>
    <version>2.2.1</version>
</dependency>

Hazelcast Configuration

hazelcast.xml

<?xml version="1.0" encoding="UTF-8"?>
<hazelcast xmlns="http://www.hazelcast.com/schema/config"
           xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
           xsi:schemaLocation="http://www.hazelcast.com/schema/config
           http://www.hazelcast.com/schema/config/hazelcast-config-5.3.xsd">

    <network>
        <port auto-increment="true">5701</port>
        <join>
            <multicast enabled="true">
                <multicast-group>224.2.2.3</multicast-group>
                <multicast-port>54327</multicast-port>
            </multicast>
        </join>
    </network>

    <map name="product-cache">
        <time-to-live-seconds>3600</time-to-live-seconds>
        <max-idle-seconds>1800</max-idle-seconds>
        <eviction eviction-policy="LRU" max-size-policy="PER_NODE" size="10000"/>
        <backup-count>1</backup-count>
        <async-backup-count>0</async-backup-count>
    </map>

</hazelcast>

6. Query Cache Configuration

Enabling Query Cache

Query Cache Setup

# Enable query cache
spring.jpa.properties.hibernate.cache.use_query_cache=true

# Query cache configuration
spring.jpa.properties.hibernate.cache.query_cache_factory=org.hibernate.cache.StandardQueryCacheFactory

Cached Queries

Cacheable Queries

@Repository
public interface ProductRepository extends JpaRepository<Product, Long> {

    @Query("SELECT p FROM Product p WHERE p.category.name = :categoryName")
    @QueryHints({
        @QueryHint(name = "org.hibernate.cacheable", value = "true"),
        @QueryHint(name = "org.hibernate.cacheRegion", value = "product-query-cache")
    })
    List<Product> findByCategoryName(@Param("categoryName") String categoryName);

    @Query("SELECT p FROM Product p WHERE p.price BETWEEN :minPrice AND :maxPrice")
    @QueryHints({
        @QueryHint(name = "org.hibernate.cacheable", value = "true"),
        @QueryHint(name = "org.hibernate.cacheRegion", value = "product-query-cache")
    })
    List<Product> findByPriceRange(@Param("minPrice") BigDecimal minPrice,
                                   @Param("maxPrice") BigDecimal maxPrice);
}

7. Cache Monitoring and Management

Cache Statistics

Cache Statistics Service

@Service
public class CacheStatisticsService {

    @Autowired
    private SessionFactory sessionFactory;

    public Map<String, Object> getCacheStatistics() {
        Statistics stats = sessionFactory.getStatistics();
        Map<String, Object> cacheStats = new HashMap<>();

        // Second level cache statistics
        cacheStats.put("secondLevelCacheHitCount", stats.getSecondLevelCacheHitCount());
        cacheStats.put("secondLevelCacheMissCount", stats.getSecondLevelCacheMissCount());
        cacheStats.put("secondLevelCachePutCount", stats.getSecondLevelCachePutCount());

        // Query cache statistics
        cacheStats.put("queryCacheHitCount", stats.getQueryCacheHitCount());
        cacheStats.put("queryCacheMissCount", stats.getQueryCacheMissCount());
        cacheStats.put("queryCachePutCount", stats.getQueryCachePutCount());

        // Calculate hit ratios
        long totalSecondLevelRequests = stats.getSecondLevelCacheHitCount() +
                                       stats.getSecondLevelCacheMissCount();
        if (totalSecondLevelRequests > 0) {
            double secondLevelHitRatio = (double) stats.getSecondLevelCacheHitCount() /
                                        totalSecondLevelRequests;
            cacheStats.put("secondLevelCacheHitRatio", secondLevelHitRatio);
        }

        return cacheStats;
    }
}

Cache Management Endpoints

Cache Management Controller

@RestController
@RequestMapping("/api/cache")
public class CacheManagementController {

    @Autowired
    private CacheStatisticsService cacheStatisticsService;

    @Autowired
    private RedisCacheService redisCacheService;

    @GetMapping("/statistics")
    public ResponseEntity<Map<String, Object>> getCacheStatistics() {
        return ResponseEntity.ok(cacheStatisticsService.getCacheStatistics());
    }

    @PostMapping("/evict/product/{id}")
    public ResponseEntity<String> evictProduct(@PathVariable Long id) {
        redisCacheService.evictProduct(id);
        return ResponseEntity.ok("Product cache evicted successfully");
    }

    @PostMapping("/evict/all")
    public ResponseEntity<String> evictAllCache() {
        redisCacheService.evictAllProducts();
        return ResponseEntity.ok("All cache evicted successfully");
    }
}

8. Cache Best Practices

Caching Best Practices

Cache Read-Heavy Data: Focus on frequently accessed, rarely changed data
Set Appropriate TTL: Balance between performance and data freshness
Monitor Cache Hit Ratios: Aim for > 80% hit ratio
Use Cache Regions: Organize cache by data type and access patterns
Implement Cache Warming: Pre-load frequently accessed data
Handle Cache Failures: Implement fallback strategies
Regular Cache Cleanup: Remove stale or unused cache entries

Cache Warming Strategy

Cache Warming Service

@Service
public class CacheWarmingService {

    @Autowired
    private ProductRepository productRepository;

    @Autowired
    private RedisCacheService redisCacheService;

    @EventListener(ApplicationReadyEvent.class)
    public void warmUpCache() {
        // Warm up frequently accessed products
        List<Product> popularProducts = productRepository.findTop10ByOrderByViewCountDesc();
        popularProducts.forEach(redisCacheService::cacheProduct);

        // Warm up categories
        List<Category> categories = categoryRepository.findAll();
        categories.forEach(category -> {
            String key = "category:" + category.getId();
            redisTemplate.opsForValue().set(key, category, Duration.ofHours(2));
        });
    }
}

Cache Performance Tuning

Performance Optimization Tips

Memory Allocation: Allocate 20-30% of heap for cache
Eviction Policies: Use LRU for most use cases
Serialization: Use efficient serialization (Kryo, Protobuf)
Network Optimization: Use compression for distributed caches
Connection Pooling: Configure appropriate pool sizes
Monitoring: Set up alerts for cache performance metrics

Hibernate Caching Strategies

Advanced Cache Configuration with Redis, EhCache, and Hazelcast

Hibernate Caching Architecture

Three Levels of Caching

1. First Level Cache (Session Cache)

Understanding Session Cache

Session Cache Example

Session Cache Management

Cache Control Methods

2. Second Level Cache Configuration

Enabling Second Level Cache

Hibernate Configuration

Entity Cache Configuration

Cacheable Entity

3. EhCache Configuration

EhCache Setup

Maven Dependencies

EhCache Configuration File

ehcache.xml

4. Redis Cache Configuration

Redis Setup for Distributed Caching

Redis Dependencies

Redis Configuration

Redis Properties

Redis Cache Service

Redis Cache Service

5. Hazelcast Cache Configuration

Hazelcast Setup

Hazelcast Dependencies

Hazelcast Configuration

hazelcast.xml

6. Query Cache Configuration

Enabling Query Cache

Query Cache Setup

Cached Queries

Cacheable Queries

7. Cache Monitoring and Management

Cache Statistics

Cache Statistics Service

Cache Management Endpoints

Cache Management Controller

8. Cache Best Practices

Caching Best Practices

Cache Warming Strategy

Cache Warming Service

Cache Performance Tuning

Performance Optimization Tips

Related Tutorials :

Quick Navigation

Cache Providers

Related Topics
